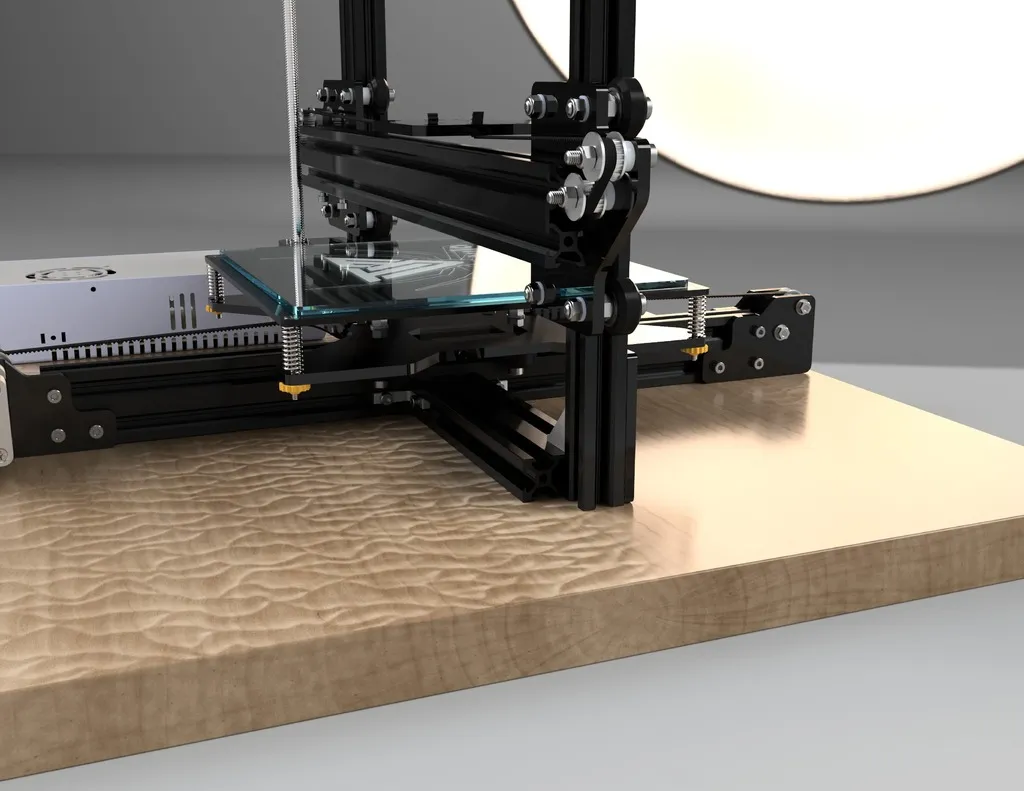

Why Upgrade Tevo Tarantula Frame to Aluminum?
The Tevo Tarantula is a popular 3D printer, celebrated for its affordability and ease of use. However, the stock frame, often made of acrylic or a similar material, can be a significant limiting factor. Upgrading to an aluminum frame is a common and highly recommended modification that drastically improves the printer’s performance and overall print quality. This upgrade addresses several weaknesses inherent in the original design, resulting in a more stable, accurate, and reliable 3D printing experience. The benefits are substantial, making it a worthwhile investment for any Tevo Tarantula owner looking to elevate their printing capabilities. This guide will explore the advantages of this upgrade and provide practical tips for a successful installation.
Improved Stability and Rigidity
The primary advantage of an aluminum frame is the significant increase in stability and rigidity. Acrylic frames, being less rigid, tend to flex and vibrate during the printing process. This movement leads to imperfections in the printed objects, such as layer shifting, ghosting, and a general lack of dimensional accuracy. Aluminum, on the other hand, provides a much more solid foundation. Its inherent stiffness minimizes flex, ensuring that the printer’s components move precisely as intended. This stability translates directly into higher quality prints with sharper details and more consistent dimensions. By reducing the wobble and flex, an aluminum frame allows the printer to maintain its calibration and produce superior results, especially with complex or long prints.
Benefits of an Aluminum Frame
Beyond stability, an aluminum frame offers several other benefits. Aluminum is a more durable material than acrylic, making the printer more resistant to wear and tear. It’s less prone to cracking or breaking, extending the lifespan of the printer. The aluminum frame also generally features a more precise design, with better alignment of the various components. This precise alignment contributes to improved print quality and reduces the need for frequent adjustments. Additionally, the upgraded frame often includes more robust mounting points for the various components, further enhancing the overall stability and reliability of the 3D printer. An aluminum frame will often create a more professional and polished look to the printer, adding to the overall appeal.
Enhanced Print Quality
The improved stability and rigidity of an aluminum frame directly translate to higher print quality. The reduced vibrations and flex minimize imperfections in the printed layers, resulting in smoother surfaces and sharper details. Fine features and intricate designs are reproduced with greater accuracy, capturing the intended geometry more faithfully. The improved precision also helps to eliminate common printing issues such as ghosting and ringing, which can detract from the overall appearance of the prints. Moreover, the more stable platform allows for better control over print settings, enabling users to experiment with different materials and parameters to achieve optimal results. In essence, an aluminum frame unlocks the full potential of the Tevo Tarantula, allowing it to produce professional-grade prints.
Increased Print Speed
With a more stable and rigid frame, you can often increase your print speeds without sacrificing print quality. The reduced vibrations and flex allow the printer’s components to move more quickly and accurately, leading to faster print times. However, it’s important to note that increasing print speed too drastically can still lead to issues. The aluminum frame provides a solid foundation that supports higher speeds, but it’s essential to fine-tune print settings, such as acceleration and jerk, to optimize performance and avoid unwanted artifacts. By carefully balancing speed and quality, an aluminum frame can significantly boost your 3D printing productivity, allowing you to complete projects more efficiently.
Reduced Vibration and Wobble
The inherent properties of aluminum, its stiffness, and its damping characteristics, help to significantly reduce vibrations and wobble during printing. This is a critical advantage because any unwanted movement can directly impact the quality of the prints. The aluminum frame absorbs and dissipates vibrations more effectively than the stock frame. This means that the print head and bed move more smoothly and precisely, resulting in more accurate and detailed prints. This reduction in vibration and wobble also contributes to quieter operation, improving the overall printing experience. The stability provided by the aluminum frame is especially noticeable when printing tall objects or those with complex geometries.
Top 7 Tips for Tevo Tarantula Aluminum Frame Upgrade
Tip 1 Prepare Your Printer
Before beginning the upgrade, it’s important to prepare your Tevo Tarantula. This includes disconnecting the power supply and removing all filament from the extruder. It’s also a good idea to take photos of the existing setup to use as a reference during the reassembly process. This will help you remember how the various components are connected and ensure that everything is correctly reinstalled. Having a clean and organized workspace is also essential. Clear the area around your printer and gather all the necessary tools and materials beforehand. This will help streamline the upgrade process and prevent potential issues.

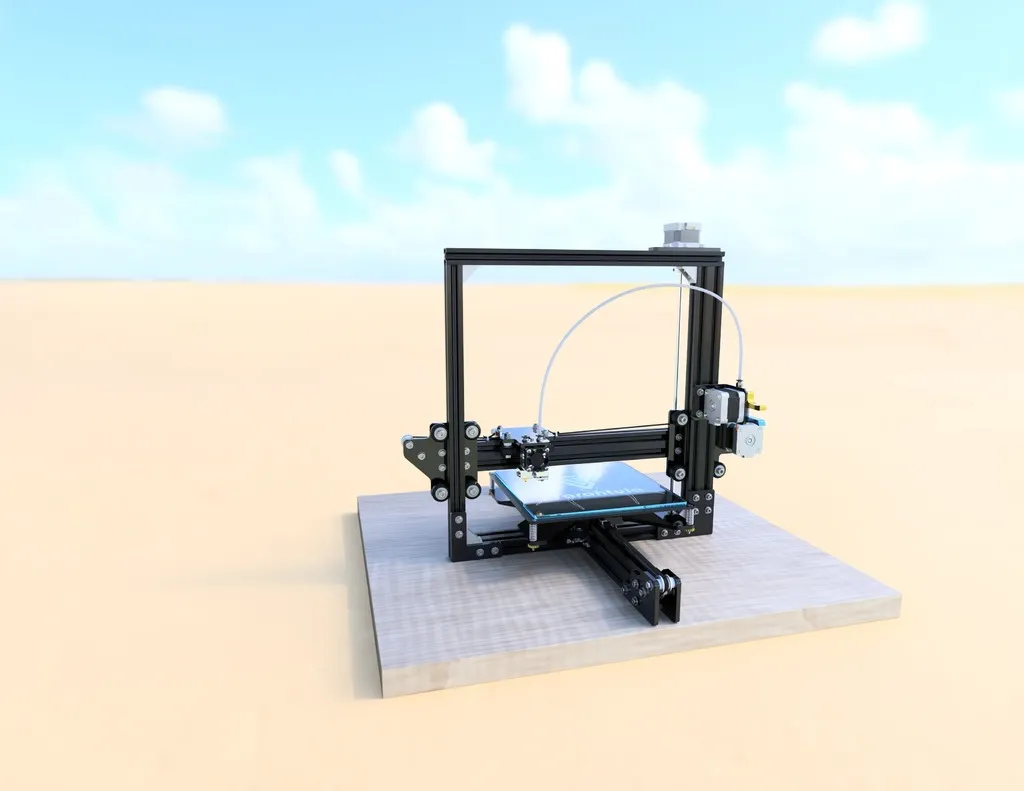

Tip 2 Gather Necessary Tools and Parts
Ensure you have all the required tools and parts before starting the upgrade. This typically includes the aluminum frame kit, which usually comes with all the necessary components, screws, and brackets. You’ll also need tools such as screwdrivers, Allen wrenches, a level, and possibly a wire cutter or pliers. It’s also advisable to have some zip ties or cable management clips to organize the wires. Review the instructions that come with your aluminum frame kit to make sure you have everything you need. Having all your tools and parts readily available will significantly reduce the time and frustration associated with the upgrade process.
Tip 3 Disassemble the Old Frame
Carefully disassemble the original frame of your Tevo Tarantula. Follow the instructions provided with the aluminum frame kit or refer to online guides. Start by removing the components mounted on the frame, such as the heated bed, the extruder assembly, the control board, and the power supply. Be sure to label or photograph the wires and connections as you disconnect them to ensure they are reconnected correctly. Remove the frame components systematically, keeping track of the screws and hardware. This is also a good time to clean and inspect the existing components for any signs of wear or damage.

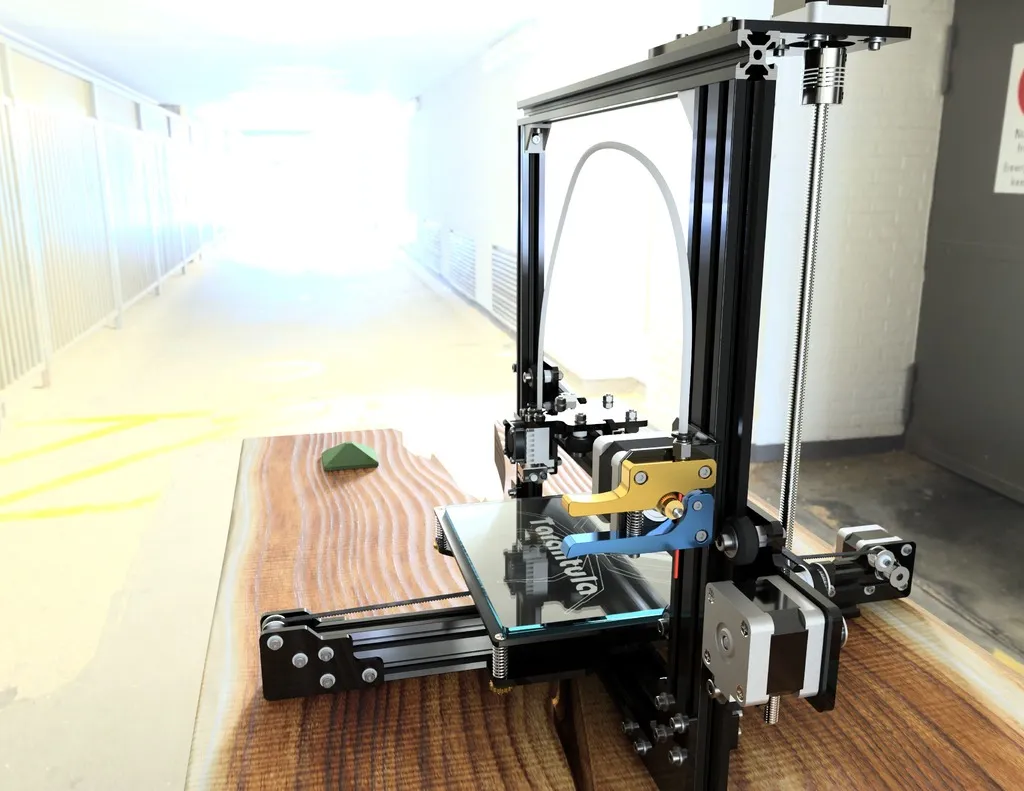

Tip 4 Assemble the New Aluminum Frame
Carefully assemble the new aluminum frame according to the instructions provided with your kit. This usually involves attaching the frame components using the provided screws and brackets. Ensure that the frame is square and level during assembly to ensure proper printer alignment. Take your time and tighten the screws securely, but avoid over-tightening, which could damage the frame or strip the threads. Refer to the instructions or online videos for guidance if you encounter any difficulties. Double-check all connections and make sure everything is aligned properly before moving on to the next step. Refer to the image for guidance.

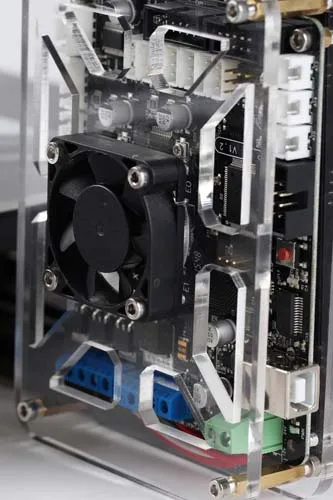

Tip 5 Install Electronics and Components
Once the aluminum frame is assembled, begin reinstalling the printer’s electronics and components. This includes the control board, power supply, heated bed, and extruder assembly. Refer to the photographs or notes you made during disassembly to ensure all wires and connections are reconnected correctly. Use zip ties or cable management clips to organize the wires and prevent them from interfering with the moving parts of the printer. Be sure to secure all components firmly to the aluminum frame, using the appropriate screws and brackets. Double-check all connections to make sure everything is properly installed before proceeding.

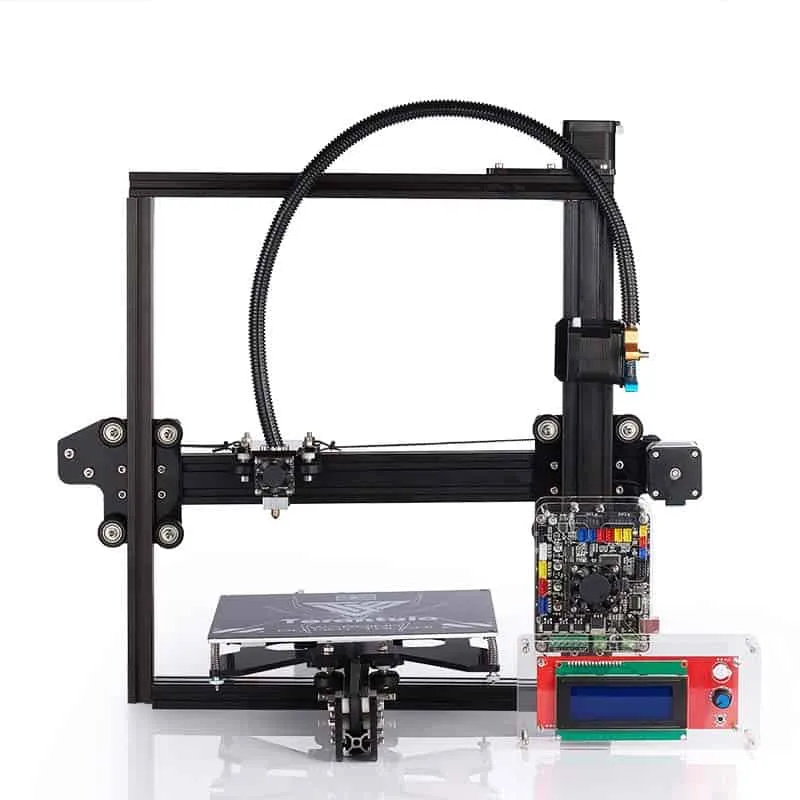

Tip 6 Leveling and Calibration
After installing the electronics and components, the printer must be leveled and calibrated. This is a critical step that ensures the first layer adheres correctly to the print bed. Use a level to check the printer bed and adjust the leveling screws as needed. Follow the manufacturer’s instructions or online guides for the correct leveling and calibration procedures. This might involve adjusting the Z-offset, calibrating the extruder steps, and checking the belt tension. Precise leveling and calibration are essential for achieving high-quality prints. Spend some time to get this right, as it will significantly impact the final results. Always ensure your bed is level before each print.

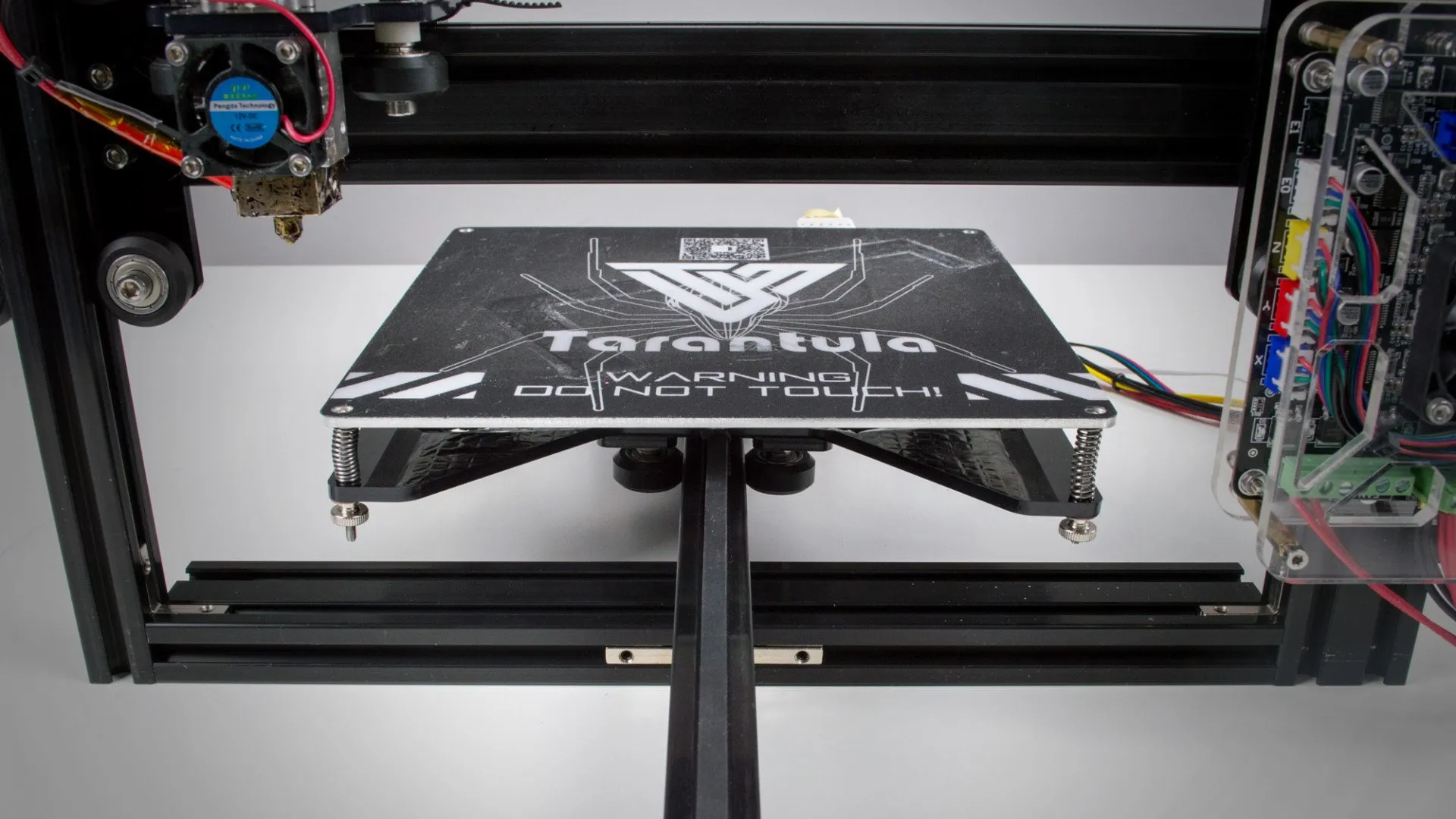

Tip 7 Test Print and Fine-Tune
After completing the upgrade and calibration, run a test print to verify the printer’s performance. Start with a small, simple print and monitor the process closely. Observe the first layer adhesion, the overall print quality, and the dimensional accuracy of the printed object. If any issues arise, such as warping, poor layer adhesion, or under-extrusion, make adjustments to the print settings or hardware. Fine-tune the printer by adjusting the bed temperature, nozzle temperature, and print speed until you achieve optimal results. Make sure to test the printing results. Repeat the test prints with different models and settings until you are confident in the printer’s capabilities.
Where to Buy a Tevo Tarantula Aluminum Frame
Online Retailers
Online retailers offer a wide selection of Tevo Tarantula aluminum frame kits. Popular platforms such as Amazon and eBay typically have a variety of options from different manufacturers and suppliers. These retailers often provide customer reviews, which can help you choose a reliable product. The advantage of using online retailers is the convenience of shopping from home and the possibility of comparing prices and features. However, always read the product descriptions carefully and check the seller’s reputation before making a purchase.
Local 3D Printing Shops
Local 3D printing shops can be a valuable resource for purchasing an aluminum frame kit. These shops often offer expert advice and support, and you may be able to view the frame kits in person before purchasing. Visiting a local shop allows you to ask questions and receive personalized recommendations based on your specific needs. Some shops may even offer installation services or provide assistance with the upgrade process. Supporting local businesses is an added benefit, and you might find a better warranty or after-sales service than you would through an online retailer.
Maintaining Your Aluminum Frame
Regular Inspections
Regular inspections are crucial to maintaining the integrity of your aluminum frame. Check the frame for any signs of damage, such as cracks, dents, or loose screws. Inspect the components mounted on the frame, such as the belts, pulleys, and endstops, for wear or damage. Ensure that all connections are secure and that the frame remains square and level. Performing these inspections regularly will help you catch any potential problems early and prevent them from affecting your prints. Consider performing a more thorough inspection periodically, perhaps every few months, depending on your printing frequency.
Cleaning and Lubrication
Keep your aluminum frame clean and lubricated to ensure smooth operation. Wipe down the frame with a soft cloth to remove any dust, debris, or filament residue. Lubricate the moving parts, such as the rods and bearings, with a suitable lubricant. Be careful not to over-lubricate, as this can attract dust and debris. Follow the manufacturer’s instructions for cleaning and lubrication, or refer to online guides for best practices. Regular cleaning and lubrication will prolong the life of your printer and ensure that it continues to produce high-quality prints.
Troubleshooting Common Issues
Even with an aluminum frame, occasional issues can still arise. If you experience printing problems, troubleshoot them systematically. First, check the print settings, such as the bed temperature, nozzle temperature, and print speed. Then, examine the mechanical components, such as the belts, pulleys, and endstops. If the problem persists, consult online resources, forums, or the manufacturer’s support. Common issues include bed adhesion problems, nozzle clogs, and layer shifting. Understanding how to troubleshoot these issues will enable you to diagnose and resolve problems efficiently. With proper maintenance and troubleshooting, your Tevo Tarantula and its aluminum frame will provide years of reliable service.
